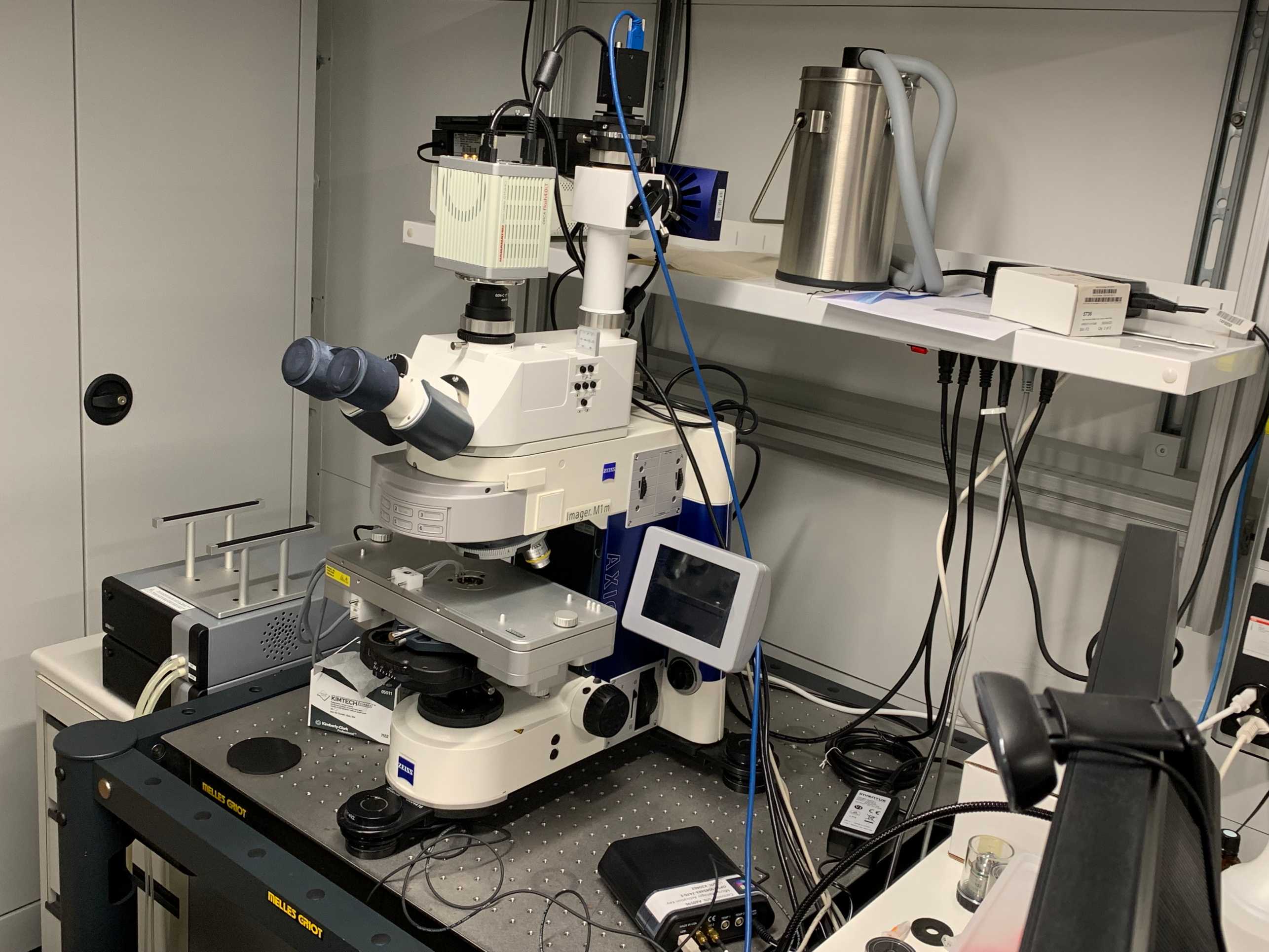

Zeiss M1m
Brief description:
The upright Zeiss M1m is equipped with liquid crystal based hardware from OpenPolScope for measuring the retardance of birefringent samples. Image acquisition and data analyzis for retardance and slow axis orientation can be measured and analyzed via micromanager plugins. More detailed information on the OpenPolscope configuration can be found Downloadhere (PDF, 4.8 MB)vertical_align_bottom and external pageherecall_made.
Either a motorized xy stage from Märzhäuser (130 x 85 mm) or the Linkam CSS450 rheology stage for shear force measurements can be mounted. For further information and specification on the CSS450 stage please visit external pagethis pagecall_made.
Besides the above mentioned techniques the microscope is equipped for conventional transmission and fluorescence microscopy operated via ZEN Blue.
Camera / detectors:
- Orca Flash4.0LT
- Zeiss AxioCam MRm
- Grasshopper 3 (FLIR) (5MP colour)
Objectives:
- 5x 0.16NA EC Plan-Neofluar, WD: 18.5 mm
- 10x 0.3NA EC Plan-Neofluar, WD: 5.3 mm
- 50x 0.55NA EC Epiplan-Neofluoar, WD: 9 mm
- 20x 0.5NA EC Plan-Neofluar, WD: 2.0 mm
- 40x 0.6NA LD Plan-Neofluar, WD: 2.9 mm
Light sources:
- Transmission: LED
- Fluorescence: HXP 120
Filter sets (fluorescence):
Software:
- ZEN Blue (Zeiss)
- Micromanager (OpenPolScope plugins: Pol-Acquisition + Pol-Analyzer)
